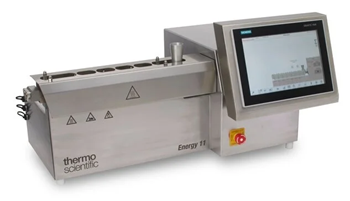

Thermo Scientific™ Energy 11 Twin-Screw Extruder

The Energy 11 Twin-Screw Extruder meets the evolving needs of battery R&D, focusing on sustainability and efficiency.

The horizontally split, fully ported barrel allows flexible feeding of solid and liquid materials, reducing waste.

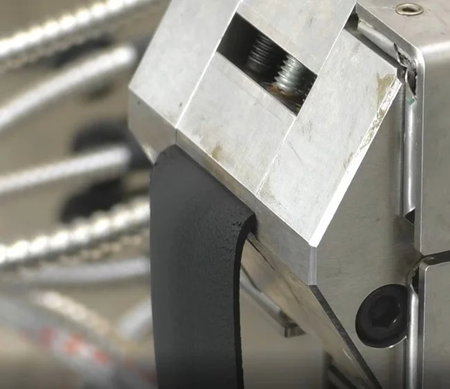

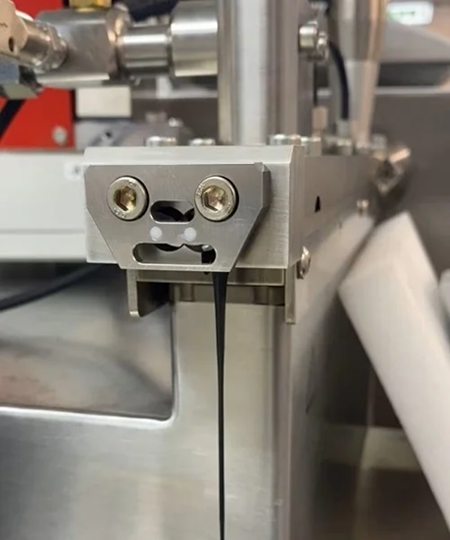

Interchangeable die designs accommodate dry granules, polymeric electrolytes, electrode films, and wet slurries. Eight regulated temperature zones ensure processing flexibility and optimize energy use.

Video Credit: Thermo Fisher Scientific – Materials Characterization

Image Credit: Thermo Fisher Scientific – Materials Characterization

Image Credit: Thermo Fisher Scientific – Materials Characterization

Image Credit: Thermo Fisher Scientific – Materials Characterization

Product Overview

The Energy 11 Twin-Screw Extruder helps overcome battery manufacturing obstacles by providing continuous and thorough mixing. The horizontally split barrel with completely ported ports enables the flexible feeding of solid and liquid materials.

The throughput of the final product varies from 50 g/h to 5 kg/h. The control panel can be detached and used to run the extruder within a glovebox or fume hood as needed. All product contact parts are crafted from CPM^® steel and designed to meet the demands of battery applications, minimizing the risk of metal abrasion in the final product.

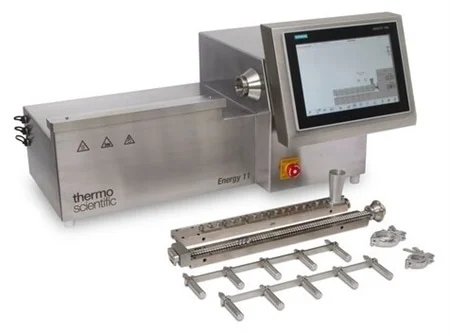

The complete assembly consisting of the feedport, barrel, screw, and die may be removed with one tri-clamp connection. This helps avoid cross-contamination and guarantees prompt cleaning.

Due to its high shear force capabilities, the Energy 11 Twin-Screw Extruder can drastically reduce solvent during mixing, usually from 60% to 15%. Scaling to a manufacturing process can result in considerable energy savings during the subsequent drying phase and lower solvent costs.

Video Credit: Thermo Fisher Scientific – Materials Characterization

Specifications

Source: Thermo Fisher Scientific – Materials Characterization
