Material segregation is complicated. It introduces numerous adverse effects that interfere with bulk material handling. Reduced process efficiency is among the most widespread challenges that users face due to material segregation. But even this issue is multifaceted.
Image Credit: Jenike & Johanson
Segregation can lead to blockages or uneven flow rates, which, over time, contribute to excessive wear and tear. This not only increases the likelihood of unplanned downtime for repairs but also makes predictive maintenance more difficult.
Effectively addressing material segregation starts with a deep understanding of the different mechanisms that cause bulk materials to separate. By identifying these factors, companies can implement better handling strategies and improve overall efficiency.
What is Material Segregation?
Material segregation occurs when particles within a bulk material separate based on differences in physical properties such as size, shape, density, and resilience.
This separation can happen at various stages of material handling, including storage, conveying, and packaging. Several factors contribute to segregation, including variations in particle size, handling methods, and the inherent properties of the materials themselves. The consequences are often problematic, leading to product quality inconsistencies, processing challenges, and increased waste.
Common Segregation Mechanisms
Various mechanisms are involved in particle segregation. Comprehending these common segregation mechanisms is essential for overcoming the issues they produce:

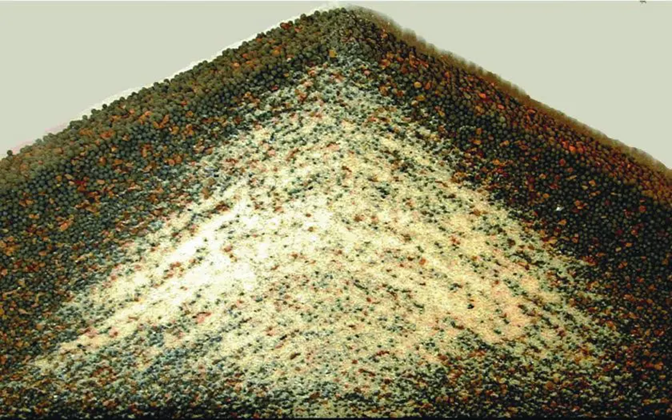

- Sifting Segregation: Among the most common forms, sifting segregation takes place when particles of different sizes separate due to gravitational forces. When bulk material is discharged to make a pile, larger particles, called coarse particles, roll down to the periphery. Meanwhile, smaller particles, including fine particles, generally stay in the center. This kind of segregation is especially widespread in processes that involve piling materials or filling bins.
- Fluidization Segregation: Fluidization segregation takes place when fine particles become airborne due to air entrainment and separate from larger particles. This occurrence is frequently observed in processes that involve high air velocities. These include pneumatic conveying or when materials are poured from a considerable height. After the airflow lifts the fine particles, they eventually settle in distinct locations from the bulk material, resulting in segregation.
- Dusting Segregation: This is a kind of fluidization in which the smallest particles become suspended in the air during the handling process. These fine particles then settle in distinct locations from the bulk material, typically resulting in contamination and product loss. Dusting segregation is especially problematic in industries that handle fine powders. It can be reduced through effective dust management systems.
- Trajectory Segregation: Trajectory segregation takes place when particles of various sizes and densities are projected from a conveyor belt. Owing to variations in their trajectories, larger and heavier particles usually travel larger distances. However, smaller particles tend to drop off sooner. This can result in a gradation of particle sizes along the length of a pile, which further exacerbates segregation.
Factors Contributing to Material Segregation
Multiple factors influence how much segregation can occur in bulk materials:
- Particle Size: The most critical factor is the difference in particle size within the bulk material. With a broad spectrum of particle sizes, smaller particles typically migrate in a way distinct from larger particles, resulting in segregation. Fine particles, owing to their small size, might become airborne or settle in a different way to coarse particles, exacerbating the effects of segregation.
- Shape and Density: Differences in particle shape and density can also play a role in segregation. Particles with irregular shapes or varying densities might move in different ways within a pile or bin. This leads them to separate from other particles.
- The Angle of Repose: The angle of repose, or the steepness of a pile, can impact how particles segregate. Materials with a low angle of repose are more likely to undergo sifting segregation as coarse particles roll down the slope with more ease than smaller particles.
- Material Handling Equipment: The design and operation of material handling equipment, including conveyors, chutes, and bins, play a critical role in segregation. Equipment that does not properly control the flow of material can exacerbate issues linked to segregation. For example, bins that promote funnel flow are more likely to lead to segregation than those built for mass flow.
Mitigating the Effects of Material Segregation
To address and reduce the effects of material segregation, it is important to understand the specific type of segregation that is taking place alongside the conditions that promote it. Below are some approaches that can help mitigate segregation:
- Optimize Particle Size Distribution: Making sure that a controlled and narrow range of particle sizes can help reduce segregation. By minimizing the difference between the largest and smallest particles, the chances of segregation are reduced.
- Control Flow Patterns: Building material handling systems that support mass flow, as opposed to funnel flow, can minimize segregation. Mass flow bins, for instance, ensure that material moves in a uniform manner, which aids in the recombination of segregated particles.
- Mitigate Air Entrainment: In processes vulnerable to fluidization segregation, controlling air flow and reducing the height from which materials are dropped can help mitigate the separation of fine particles from the bulk material.
- Regular Testing and Analysis: Carrying out regular segregation tests and assessing material flow characteristics are essential steps for developing effective solutions. By understanding how a material acts under various conditions, it is possible to build equipment and processes that mitigate material segregation.
Prevent Material Segregation From Causing Issues With Bulk Materials
Understanding the kinds of material segregation and their underlying causes is critical for anyone involved in bulk material handling. By identifying how material segregation takes place and using approaches to reduce it, companies are able to enhance product quality, minimize waste, and improve general process efficiency.
Addressing material segregation can significantly enhance industrial operations, whether by optimizing particle size distribution, controlling flow patterns, or implementing advanced material handling equipment.
This information has been sourced, reviewed and adapted from materials provided by Jenike & Johanson.
For more information on this source, please visit Jenike & Johanson.
