Pneumatic conveying systems are commonly used in industries to efficiently move materials, particularly bulk solids. Whether for food processing, chemical handling, or material manufacturing, these systems enable a high degree of flexibility and automation.

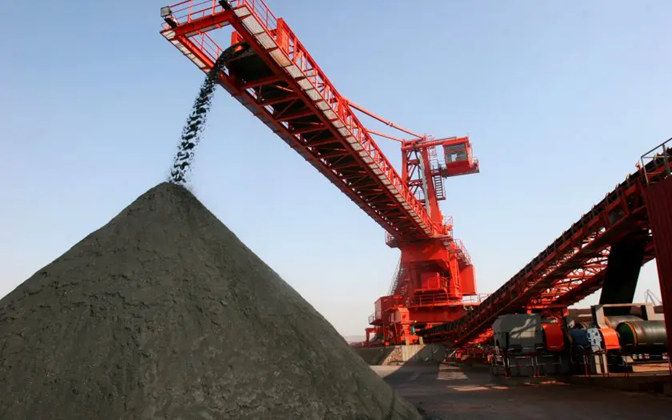

Loading ore conveyor. Image Credit: Jenike & Johanson
However, maximizing the design of a pneumatic conveyor necessitates careful attention to multiple factors that affect performance and longevity. In the following article, Jenike & Johanson will outline essential factors to consider when building an efficient pneumatic conveying system, focusing on flow rate, material properties, and system configuration.
1. Understand Material Characteristics
Understanding the characteristics of conveyed materials is essential for optimizing pneumatic conveyor systems. Factors such as bulk density, particle size, moisture content, and friability determine how materials move through the system and influence overall efficiency.
For instance, materials with high bulk density require more energy to transport, while fine, dry materials are more prone to dusting and segregation. By analyzing these properties, engineers can fine-tune system parameters to ensure smooth and efficient operation.
- Bulk Density: Affects the volume of material that can be moved and requires system adjustments to prevent blockages or excessive wear.
- Particle Size: Larger particles may need slower velocities to minimize degradation, whereas fine particles require greater airflow to stay suspended in the conveying line.
- Friability: Fragile materials that break down easily may require lower speeds or gentle pipeline turns to reduce degradation.
2. Choose Between Dense Phase and Dilute Phase Conveying
Pneumatic conveyor systems typically operate in two modes: dilute phase and dense phase conveying. Dense phase conveying is usually preferred when handling abrasive or fragile materials. It utilizes lower velocities and higher pressures, diminishing system wear and tear while maintaining material integrity.
At the same time, dilute phase systems transport materials at elevated velocities, making them appropriate for less sensitive materials.
The choice between these two conveying modes depends primarily on processing requirements and material properties. Dense phase conveying systems, for example, are ideal for food processing applications where delicate ingredients need to be transported gently to prevent damage.
3. Optimize Flow Rate and Conveying Air
The flow rate in pneumatic conveyors should be calculated with care. If the air velocity is exceedingly low, materials may settle in the conveying line, leading to blockages. On the other hand, if it’s exceedingly high, materials might suffer from excessive wear and tear, or the system may experience more energy consumption.
Proper regulation of conveying air is also essential. Preserving a balance between the material load and the quantity of air enables the system to run efficiently. This is especially important for vacuum conveying systems, where lower air pressure is utilized to transport materials.
Key Considerations:
- Choosing the appropriate air mover (including blowers or compressors) based on the system’s pressure needs.
- Reducing bends in the pipeline to minimize pressure drops and preserve an efficient positive pressure flow.
4. Minimize Pressure Drops in the System
Pressure drop is among the most significant issues in pneumatic conveying system design. As air traverses lengthy pipelines or past multiple bends, the pressure needed to move the material compounds. Reducing these drops is critical for maximizing performance.
To Minimize Pressure Drops:
- Utilize long-radius bends of 4-6 pipe diameters to promote smoother material flow.
- Limit the length of horizontal pipe runs as much as possible and avoid short runs after the feed point or between bends.
- Size pipes with precision to preserve a balance between conveying velocity and air pressure.
Proper piping design ensures the system maintains adequate velocity without overloading the air mover, helping to prevent system failures and minimize material degradation.
5. Material Feeding and Control
Proper material feeding into the conveying line is essential for system efficiency. The choice of feeder depends on the material type and required flow rate. For example, rotary valves are commonly used in pressure conveying systems because they help maintain consistent pressure while allowing controlled material entry.
Additionally, real-time control systems that monitor airflow, pressure, and material load are crucial. These systems help prevent issues like overfeeding or air starvation, which can lead to inefficiencies or system failures.
6. Wear and Maintenance Considerations
Conveying abrasive materials can lead to excessive wear on pipelines and bends, resulting in expensive maintenance and downtime. To reduce wear:
- Utilize wear-resistant materials in regions that experience the most elevated levels of abrasion.
- Consider installing ceramic-lined parts in crucial areas along the system.
- Ensure effective system design that minimizes high-velocity impacts against pipe walls, which can exacerbate wear.
Frequent inspections and preemptive maintenance are also critical for ensuring the system runs efficiently without unexpected downtime.
7. Pilot Testing and Validation
No matter how well-designed a pneumatic conveying system is on paper, real-world testing is essential for validation. Pilot tests allow engineers to confirm design assumptions, ensure the system meets processing requirements, and make necessary optimizations before full-scale implementation.
Pilot testing also allows for adjustments to airflow, material feed rate, and pipe layout to better align with operational needs. This helps prevent potential issues such as blockages or material degradation, ensuring a more efficient and reliable system.
Closing Thoughts
Enhancing a pneumatic conveyor system requires a comprehensive understanding of material properties, system configuration, and air supply. By selecting the correct type of conveying system, calibrating the flow rate, and reducing pressure drops, businesses can guarantee both efficient and cost-effective operation.
Whether handling bulk solids in food processing or moving raw materials in a manufacturing facility, a properly-optimized pneumatic conveyor is able to save energy, mitigate wear, and enhance overall system performance.
Implementing these strategies requires technical expertise and experience, but the benefits—improved operational efficiency and long-term system reliability—make it well worth the investment.
