Building silos involves more than just constructing strong walls—it requires precise management of the materials within. Silo engineers navigate complex challenges where shifting forces continuously affect both stability and efficiency. Every detail, from material flow patterns to structural integrity, relies on a deep understanding of these dynamic forces.

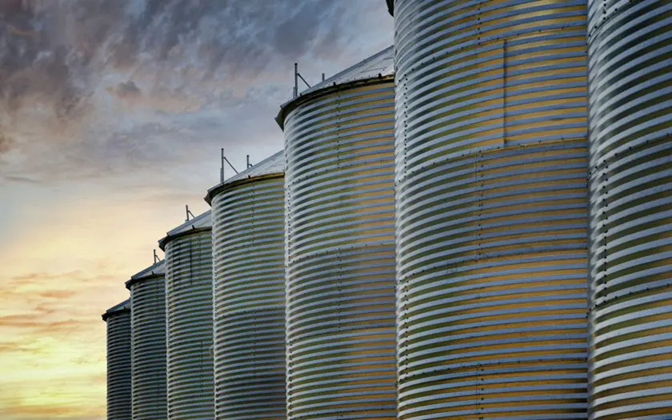

Image Credit: Jenike & Johanson
Comprehending Silo Dynamics
Dynamics in silo engineering involve the forces and movements that occur both inside and around the silo structure. These dynamics can arise from a variety of sources, including material flow during filling or discharge, vibrations from nearby equipment, or even external factors such as wind or seismic activity.
Unlike static loads, which remain constant and predictable, dynamic loads are variable and can lead to unpredictable outcomes if not properly considered during the design phase.
One of the main dynamic challenges in silo engineering is silo quaking. This phenomenon happens when bulk materials, especially fine powders, compact while stored and then suddenly release as the material below is discharged.
The rapid flow of material can create vibrations and shock waves that travel through the silo structure, which could lead to structural fatigue or even failure if not properly managed. A related issue, known as silo thumping, occurs when air pockets within the material collapse unexpectedly, causing a loud thumping noise and a brief spike in pressure along the silo walls.
The Role of Flow Patterns
The flow pattern of material within a silo plays a crucial role in its dynamic behavior. Engineers typically design silos to accommodate one of two primary flow patterns: mass flow or funnel flow.
In mass flow, all the material inside the silo moves simultaneously, with the material at the top gradually settling downward as it is discharged from the bottom. This uniform movement helps minimize dynamic forces within the structure. However, it requires careful design to ensure consistent flow and prevent blockages that could disrupt the process.
Meanwhile, funnel flow happens when just a portion of the material flows while the rest remains in place. This pattern is more likely to undergo dynamic problems, including arching and ratholing, where the material forms stable structures that could collapse at any moment, resulting in dynamic loads on the silo walls.
Engineers should carefully account for such potential problems when choosing and building the proper flow pattern for a given material.
Material Characterization and Dynamic Effects
Understanding the physical characteristics of the materials stored in silos is essential for predicting and minimizing dynamic effects. Factors such as particle size, moisture content, and bulk density can significantly influence how a material behaves within the silo. For example, materials with high moisture content may clump together, leading to uneven flow and increased dynamic loads during discharge.
The interaction between the material and the silo walls also affects dynamic behavior. Friction between the material and the walls can cause the material to stick, resulting in uneven flow and higher pressure on specific structural areas. This issue is particularly problematic in funnel flow silos, where stationary material can create concentrated localized loads when it suddenly breaks free.
Reducing Dynamic Challenges in Silo Design
Engineers use multiple approaches to reduce the dynamic issues linked to silo design. Among the most effective is the use of vibration analysis in the design phase. Simulating the dynamic loads that the silo will experience during operation, engineers can detect potential weak spots and make reinforcements prior to construction.
Another technique is the use of shock absorbers and dampeners inside the silo structure. These devices help absorb the energy from dynamic loads, diminishing the effect on the silo walls and prolonging the structure’s lifespan.
In some cases, engineers might additionally build the silo with a somewhat flexible structure, enabling it to absorb and dissipate dynamic forces in a more effective manner.
The Importance of Integrated Engineering
Dynamic considerations in silo engineering are not isolated; they interact with other design aspects, including structural integrity and material handling efficiency. As a result, a multidisciplinary approach is essential. Engineers should collaborate with material scientists, structural engineers, and equipment manufacturers to create silo designs that account for all potential dynamic effects.
By incorporating these factors into the design process, engineers are able to make silos that are structurally robust and capable of handling the dynamic issues posed by the materials they store. This comprehensive approach makes sure that the silos perform reliably over the course of their operational lifetime, minimizing the risk of failures and improving general efficiency.
Conclusion
Jenike understands that effective silo design demands more than structural integrity alone; it requires deep comprehension of the underlying dynamic forces. By addressing these factors early on in the design process, Jenike ensures that its clients’ silo systems are strong, reliable, and customized to the distinct characteristics of specific bulk materials.
The company’s expertise in both conceptual and functional engineering allows it to seamlessly integrate dynamic considerations into every project. This approach helps minimize the risk of operational disruptions while enhancing the efficiency of storage solutions.
