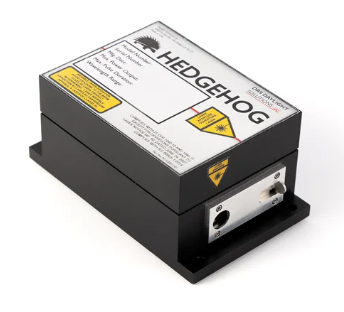

Charming name. Impressive capabilities. Perfect for both laboratory and OEM applications, the Hedgehog Mid-IR Laser represents DRS Daylight's latest tunable laser head.
Utilizing the established External Cavity Quantum Cascade Laser™ technology, the Hedgehog laser combines a compact size with tuning speeds exceeding 5000 cm-1/second, options for continuous wave or pulsed output, high power, TEM00 beam quality, and unparalleled spectral repeatability.
Molecular spectroscopy applications both reap the benefits of rapid, high-SNR data acquisition. The ability to investigate various molecules, or to assess an absorption feature with extensive dynamic range, is further enhanced by wide mid-IR tuning.
The Hedgehog system delivers these benefits with its broad, fast tuning across the mid-IR spectrum, low-noise output, and high spectral and spatial beam quality. Its sealed, alignment-free design and included GUI and SDK as standard features make it easy for users to access this performance.
Choose between the Hedgehog (which tunes up to 200 cm-1), Hedgehog-UT (tunes up to 400 cm-1), and Hedgehog-LT (tunes up to 30 cm-1) standard models.
Highlights
Features and Benefits
- Ultra-quiet CW: RIN as low as -140 dBc/Hz enables higher-SNR spectroscopy
- High output power for high SNR* of > 1 W (peak) and > 0.5 W (average)
- CW* or pulsed output (up to 3 MHz/30% duty)*
- Superb TEM00 beam quality and low beam pointing allow fiber coupling
- Superior wavelength repeatability for higher-accuracy spectroscopy
- SideKick™ controller, GUI, and SDK standard with all systems
- Tune up to 400 cm-1 at speeds up to 5000 cm-1/s
- Proprietary HFQD™ circuitry protects your chips
- Wavelength Availability: 3-13 µm
Applications
- Standoff detection
- Atmospheric research
- Process control
- TIC, VOC, GHG chemical and biological agent detection
- Nanoscale imaging and spectroscopy
- Biomedical diagnostics
- Combustion diagnostics
- Protein analysis
- Photoacoustic spectroscopy
- Imaging
Product Specifications
Source: Daylight Solutions Inc
| . |
. |
| Center Wavelength Availability |
< 4 μm > 13 μm |
| Modes of Operation |
Pulsed or CW2 |
| Tuning Modes |
Set λ, Step & Measure, Continuous Scans |
| Max. Tuning Speed (Step) |
250 ms step-and-settle time to arbitrary λ |
| Max. Tuning Speed (Scan) |
Slew rates to > 5,000 cm-1/s |
| Wavelength Accuracy |
≤ 1 cm-1 |
| Wavelength Repeatability |
To ≤ 0.1 cm-1 [5] |
| Average Power Stability |
< 2% (1 hr) |
| Spatial Mode |
TEM00 (nominal) |
| Beam Divergence |
< 4 mrad (full angle, 1/e2 intensity width) |
| Beam Pointing Stability |
< 1 mrad (beam centroid change) |
| Spot Size |
< 2.5 mm (1/e2 intensity radius) |
| Polarization |
Linear, vertical, > 100:1 |
