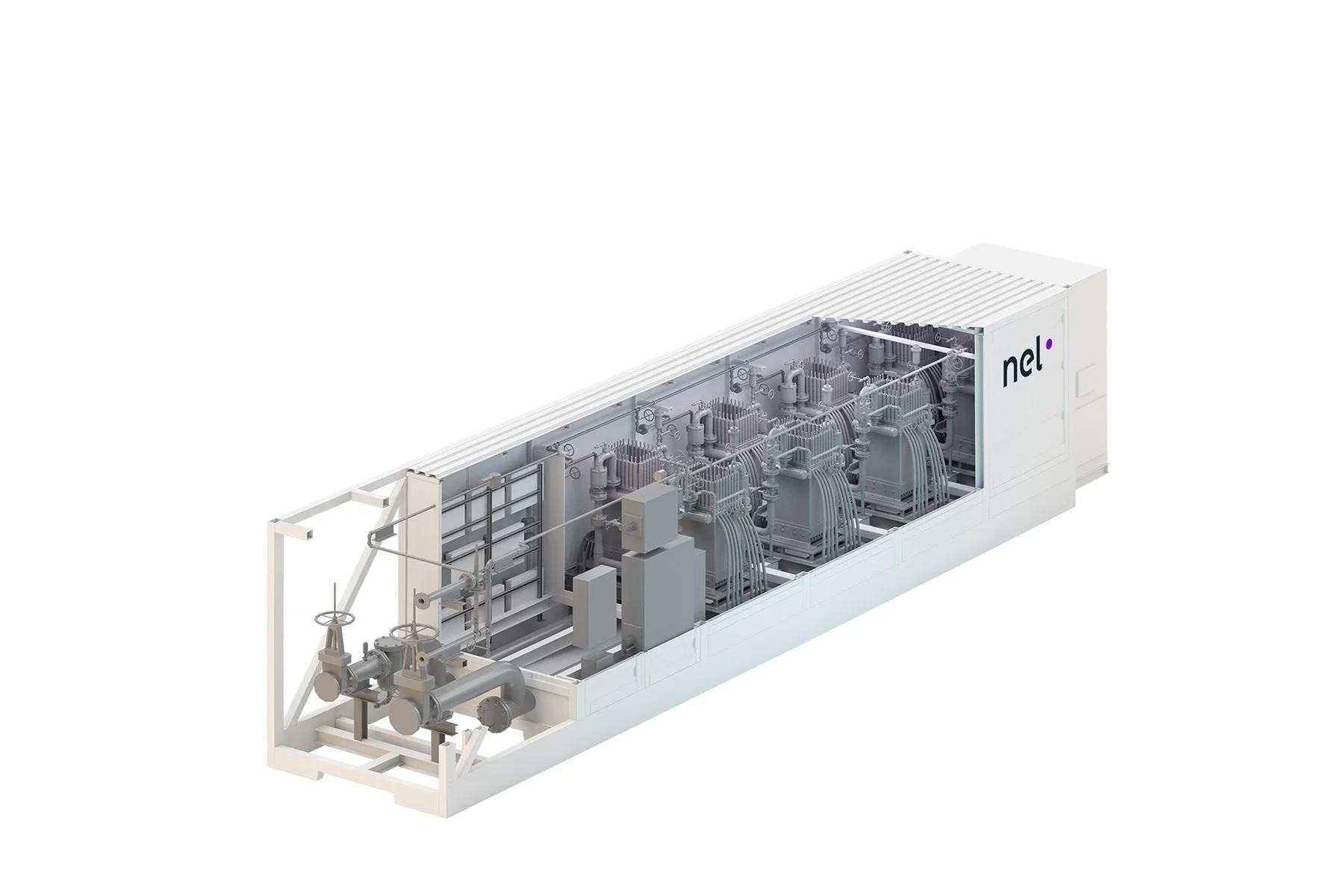

Based on our 10 MW modular deign, each state-of-the-art PSM Series electrolysers unit
houses eight 1.25 MW PEM stacks and is designed to offer guaranteed, repeatable performance. The units can be sited outside and networked together to form electrolyser plants at scale. Each module can produce up to 2,020 Nm3/h or 4,300 k/24 h of hydrogen gas at 99+% purity.
Features
- Containerized electrolyser stack module – easy integration into large plants
- Cost-effective hydrogen supply – tracks electric costs
- Proton Exchange Membrane (PEM) electrolyte – no caustic chemicals
- Outdoor placement – eliminates the need for a building and reduces construction cost
- Pre-integrated stacks – reduce installation time and risk
- Pre-tested and at factory assembled – helps maintain quality control
Specifications
Source: Nel Hydrogen
| Specifications |
|
|
PSM |
|
| Net Production Rate |
|
|
2,020 Nm³/h – 4,300 kg/24 h |
|
| Turndown Range |
|
|
10 to 100% |
|
| Power Consumption at Stack at 100% Capacity1 |
|
|
4.7 kWh/Nm³ – 53.2 kWh/kg |
|
| Purity |
|
|
99+%, saturated gas with liquid water |
|
| O2-Content in H2 |
|
|
< 1 ppm v |
|
| H2O-Content in H2 |
|
|
< 2 ppm v |
|
| Delivery Pressure |
|
|
30 barg (435 psig) |
|
| Dimensions W x D x H, without vent stack |
|
|
13.4 m x 2.4 m x 2.9 m (44 ft x 7.9 ft x 9.5 ft) |
|
| Ambient Temperature (Low and High Ambient Temperature Options Available) |
|
|
-30 to 50°C (-22 to 122°F) |
|
| Electrolyte |
|
|
Proton Exchange Membrane |
|
Feed Water
Consumption |
|
|
0.9 l/Nm3 |
|
For reference only – specifications are subject to change. Please contact Nel Hydrogen for solutions to best fit your needs.
1 Beginning of life and dependent on configuration and operating conditions.
