As more electric vehicles (EVs) hit the roads globally, their growing presence and the shift toward sustainable transportation have become major talking points. A robust charging infrastructure is crucial to supporting the growing demand for EVs as the transportation sector moves toward decarbonization. However, several challenges in EV infrastructure affect the expansion of renewable energy and electric vehicles. This article will examine the key obstacles faced by EV charging stations.

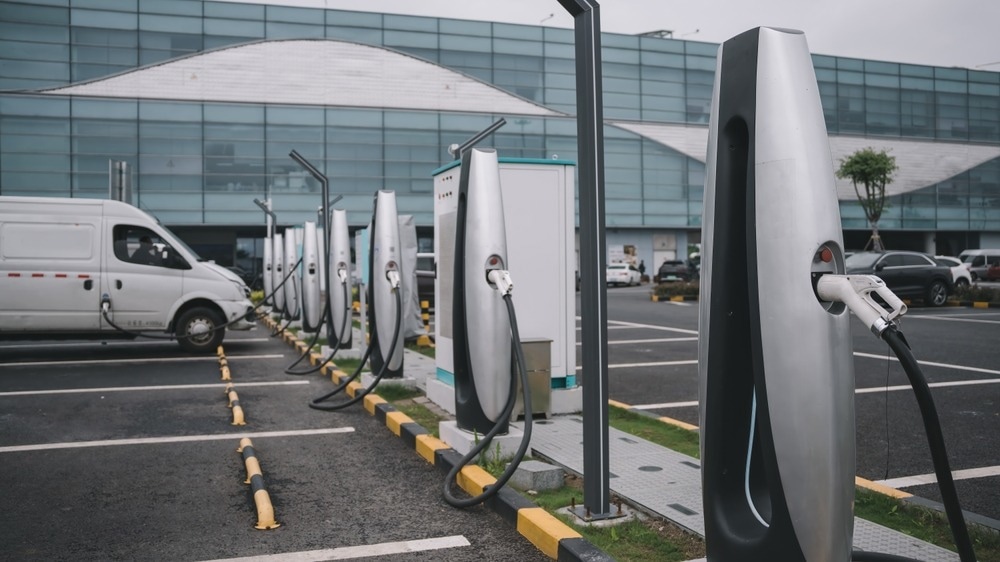

Image Credit: 4045/Shutterstock.com
Technical Challenges of Electric Vehicle Charging Stations
Some primary challenges with electric vehicle charging stations center around technical issues whilst charging and charging station technology.
Firstly, there are issues with charger compatibility and a lack of standardization. Drivers need to know reliably whether the correct charger is available at an EV charging station for their vehicle. This is not a problem with ICE vehicles as gas and diesel pumps are standard designs worldwide.1,2
Fast charging is a key consumer demand, presenting a bottleneck for EV adoption and electric vehicle charging stations. Despite the rapid evolution in charging station technology, many electric vehicle charging stations do not meet this demand: over half of all charger types in the UK, for instance, are slow charger types. These have a power rating of under 8KwH.3
These technical issues can slow consumers' adoption of electric vehicles. Range anxiety is a top concern for many consumers, particularly in rural areas without proper charging infrastructure. If chargers are slow and incompatible, consumers may be less likely to replace polluting ICE vehicles.
Furthermore, battery limitations can present further technical challenges for the sustainable transportation sector. These can affect charging efficiency and longevity, hindering fast charging capabilities and potentially leading to increased costs and maintenance needs.
Infrastructure and Accessibility
Accessibility and infrastructure are also key challenges with electric vehicle charging stations. Whilst urban areas such as London in the UK have an impressive charging network, with London alone having a charging density of 221 chargers per 100,000 residents, this is not the case in rural areas. Expanded infrastructure is urgently needed to meet current and future demand.3
At-home charging points have done a lot of work in reducing the lack of EV charging infrastructure, but on-road solutions are distinctly lacking. Companies like Shell Recharge, which has installed nearly 9,000 public charging stations in the UK, are helping to overcome this bottleneck. Tesla’s Supercharger network is also a noteworthy electric vehicle charging network.
Another accessibility issue and technical challenge is the non-standardization of apps. This aspect of charging station technology is another key bottleneck with electric vehicle charging stations. Multiple companies offer on-road EV charging, each with its own app that allows drivers to access charging and pay for its use.
Aside from the relative lack of charging infrastructure, there are concerns about adding so much capacity to energy grids. Grids must be able to cope with the current and future spike in demand for EV charging to avoid potential power cuts. By 2024, there were 1.1 million full EVs on the UK’s roads alone, a remarkable 13% increase from 2023, leading to a marked increase in demand and capacity.
Electric vehicle charging station accessibility can also be an issue for disabled drivers. Parking spaces may be too small for adapted vehicles, charging points may not be visible, and payment systems can be too high for wheelchair users. Furthermore, the height of the curbs may make access difficult, and even heavy cables may be difficult for disabled drivers to use without help.
Environmental and Societal Impact of Sustainable Transport
While renewable energy and EVs are a significant element of the green energy transition, the rise of sustainable transportation does not come without some environmental cost.
The manufacturing cycle and end-of-life disposal of charging station technology such as batteries can present environmental and pollution issues and have potential societal impacts on local communities, for example, in developing nations. These issues must be addressed for charging station technology to be classed as truly sustainable.4
While renewable energy and EVs reduce greenhouse gas emissions overall, non-renewables in the energy grid mix may be used to power electric vehicle charging stations. However, this problem should be reduced over the coming years as the global renewables mix increases.
Navigating the Challenges of Electric Vehicle Charging Infrastructure.
Video Credit: Incredible Ride/YouTube.com
Economic and Regulatory Hurdles of EV Charging
Aside from technical, infrastructure, and environmental issues around electric vehicle charging stations and sustainable transportation, there are also economic and regulatory hurdles proving challenging for the sector.
EV charging infrastructure is expensive to install and maintain. Batteries need to be replaced over time, and initial capital costs may be high. Charging infrastructure and technologies must be constantly updated, presenting additional lifecycle costs for operators. Costs could be passed onto consumers, but those same consumers may be reluctant to pay higher charging costs on top of the expense of new EVs.
Regulatory hurdles such as land use regulations, utility approvals, and permits can also be hard and costly to navigate. These regulatory frameworks are essential in shaping the development of electric vehicle charging stations and differ in each nation. The need for standardized policies across regions and nations is crucial.5
What is the Future of Electric Vehicle Charging?
The remarkable rise of sustainable transportation, renewable energy, and EVs has led to a growing recognition of the technical, infrastructural, accessibility, environmental, economic, and regulatory challenges faced by electric vehicle charging stations. Overcoming these challenges will require continued innovation and collaboration across private and public sectors.
While persistent EV infrastructure challenges present complex bottlenecks, some solutions will aid the uptake of sustainable transportation in the coming years. Improving rural charging stations, installing faster charge capability, standardizing chargers and apps, and streamlining regulatory processes are examples of how these critical issues could be addressed in the future.
References and Further Reading
- Gilipin, L (2014) The challenges of EV charging: 10 things to know [online] TechRepublic. Available at: https://www.techrepublic.com/article/the-challenges-of-ev-charging-10-things-to-know/
- Codibly (2024) The main challenges that EV charging networks face today [online] Available at: https://codibly.com/evse/the-main-challenges-that-ev-charging-networks-face-today/
- Hargreaves, L (2024) EV Charging Trends 2024: Rapid Growth and New Challenges [online] EV Magazine. Available at: https://evmagazine.com/articles/global-ev-outlook-2024-trends-in-ev-charging
- Abdullah (2024) The Environmental Impact of Widespread EV Charging Infrastructure [online] EV Mechanica. Available at: https://www.evmechanica.com/the-environmental-impact-of-widespread-ev-charging-infrastructure/
- Zamanov, N (2024) The Challenges of Developing EV Charging Infrastructure in Urban Areas [online] Cyberswitching. Available at: https://cyberswitching.com/challenges-developing-ev-charging-infrastructure-urban-areas/
