May 13 2010
Power-One offers AURORA Photovoltaic grid connected Inverter models PVI-5000-OUTD-US and PVI-6000-OUTD-US. The PVI-6000-OUTD-US inverter is compact sized and offers a maximum output of 6000 W.
This inverter incorporates two input positions with two MPPTs with an operating range of 90 to 580 VDC for maximum power harvesting and delivers up to 97% energy output. The PVI-6000-OUTD-US inverter is installed in a IP65 rated enclosure to endure tough weather conditions. The incorporated front-mounted heat sink prevents pollution, increases the cooling efficiency for long term usage.

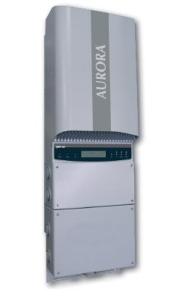

AURORA Photovoltaic Grid Connected Inverter
The AURORA PVI-6000-OUTD-US inverter manufactured by Power-One has the input parameters such as a nominal DC power of 6.18 kW, a max recommended DC power of 6.4 kW, an operating MPPT input voltage range of 90 to 580 V, a max input voltage of 600 V, and a nominal activation voltage of 200 V. The output parameters of this model include a nominal AC power of 6000 kW, a max AC power of 6000 kW, a maximum AC voltage range of 187.2-224.6; 216-259.2; 249.3-299.2 V, a nominal AC frequency of 60 Hz.
The height x width x depth dimensions of this Photovoltaic grid connected Inverter is 38 5/8 inches x 12 13/16 inches x 7 11/16 inches and weighs 66 lbs. This inverter has a two lines alphanumeric display. For the purpose communication this model incorporates a RS485 and an USB connection. This inverter meets the certification and standard requirements of UL1741/IEEE1547 & CSA -C22.2 N.107.1-01, VDE0126, CEI 11-20, DK5940, CEI64-8, IEC 61683, IEC 61727, EN50081, EN50082, EN61000, and CE certification.
