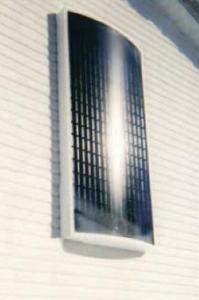

RA 240 SOLAR MAX Solar Heating System from Cansolair

Cansolair offers the RA 240 SOLAR MAX solar heating system. The energy output of this model is rated as 1200 to 2400 W and utilizes 31 W for the purpose.

This panel weighs 130 lbs and has a width x height x thick dimension of 44 inch x 85.5 inch x 4 inch and at the center the panel has a thickness of 8.5 inch. This panel has more irradiance level and angle of frequency to gain more heat per square foot area.

The RA 240 SOLAR MAX solar heating system from Cansolair utilizes a curved UV stabilized polycarbonate lens. This solar panel is sealed airtight to prevent fogging of the lens or mold and maintains heat generation without drop. This model works on forced convection solar heating principle. The core of each panel module contains 240 aluminum cans. This unit is capable of changing the air in a 1000 sq. ft. room within 1.5 h of charging and maintains an environmentally friendly the air level in the room by utilizing only 15 min of sunlight per hour.

The RA 240 solar unit draws 90 cu. ft./min of colder and heavier air from the floor level through a filter by utilizing a powerful fan. The drawn air is pumped through the first check valve, a tailor made collector core and pumped back into the room by utilizing the last check valve placed near the ceiling, thus maintaining the uniformity of temperature in the room. This heater model utilizes 115v AC wall outlet /12V DC 220V-50 Hz. Intl. as power supply option.
