May 14 2010
SunPower provides SPR-6500f & SPR-8000f inverter models. The robust constructed inverters are securely placed in a metal housing and designed to provide UV resistance and safeguard against corrosion.
The SPR-8000f inverter model can be conveniently used both in indoor and outdoor applications. This inverter model features a range of input voltages and has an automatic transfer switching facility thus achieving maximum output voltage even during low level sun irradiation conditions.

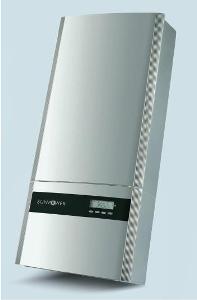

SPR-8000f Inverter
The SPR-8000f inverter model provided by SunPower is a vertical and wall mounting model and utilizes NEMA 3R enclosure. The width x height x depth measurement of this unit is 434 mm x 926 mm x 244 mm and weighs 38 kg. The recommended max array input power of this model is 9200 W, its MPPT voltage range is 230–500 V, max DC input voltage is 600 V, max. DC input current is 37.4 A, DC voltage ripple is < 3%, and has six number of fusible string inputs.
This positively grounded solar inverter utilizes an integrated, lockable DC disconnect switch for disconnecting the DC power for increased safety. The amplified AC output makes this model convenient for commercial usages up to 100 kW. The SPR-8000f offers a peak efficiency of 96.2%. This inverter is designed modular with modular cabling and power units and flexible connections thus allowing safety during installation and allows simplified servicing. This inverter model confirms to various standards and specifications.
