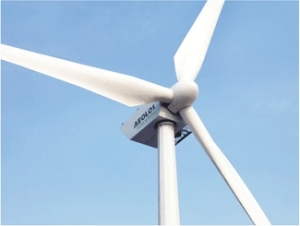

Aeolos-H 50kw Horizon Axis Wind Turbine from Aeolos Wind Turbine

Aeolos Wind Turbine offers the Aeolos-H 50kw horizon axis wind turbine. This wind turbine incorporates a patented three-phase permanent magnet direct drive generator and does not use a gearbox or booster device and performs with low noise. The efficiency of the generator is >0.85. The Aeolos-H 50kw can be used in on grid and off grid type of applications.

The rotor installed in this wind turbine measures 18 m in diameter and offers a swept area of 254.3 m² with a speed of 60 rpm. This wind turbine incorporates three blades made of glass fiber. The Aeolos-H 50kw horizon axis wind turbine from Aeolos Wind Turbine offers an output voltage in the range of 380-500 V with 50 Hz or 60 Hz frequency. The wind turbine starts rotating at a cut-in wind speed of 3 m/s and its cut-out wind speed is 25 m/s. The survival wind speed of this wind turbine is 45 m/s. For stopping the wind turbine operations, an automatic electronic brake system is used as main brake system and a hydraulic system is available as secondary safety brake system.

The free-standing wind turbine tower is available in 18 m or 24 m heights. The overall weight of this wind turbine is 3120 kg. The noise level of this wind turbine is measured as 48.5 db(A) at 5 m/s speed. This wind turbine is designed to work in temperature ranges -20 to +50°C.
