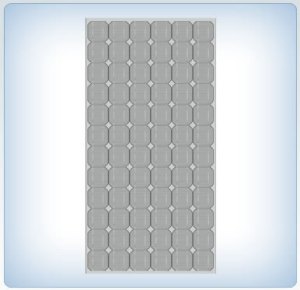

Meridian CR180 Solar Module from Crown Renewable Energy

Crown Renewable Energy offers the Meridian CR180 solar module. This module meant for grid connected applications incorporates 72 monocrystalline silicon cells in series. This solar module is pre-tested utilizing a fully tuned solar simulator for accurate maximum power, current rating and voltage.

The Meridian CR180 solar module incorporates a patented, compact and flat type of junction box with 10 A series fuse rating and a lead wire with connector type of output terminal. The junction box prevents water seepage, protects the connecting ends against corrosion and quickly disperses excess heat to provide lower operating temperature. The Meridian CR180 solar module offered by Crown Renewable Energy has a dimension of 1576 mm x 799 mm x 35 mm and weighs 17 kg. This solar module offers a power of 180 W, an open circuit voltage of 44.9 V, a maximum power voltage of 37.2 V, a short circuit current of 5.53 A and a maximum power current of 4.84 A.

This solar module conveniently operates in temperature ranging from -40 to +90ºC. The Meridian CR180 solar module is manufactured in ISO 9001 facility and meets the certification requirements of IEC 61215 and IEC 61730.
