CS-450S Copper Sun Solar Collector from Integrated Solar

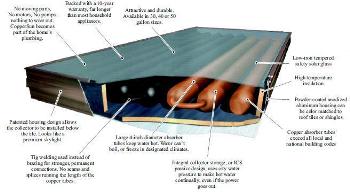

Integrated Solar offers the CS-450S Copper Sun Solar Collector. This solar module is built utilizing low-iron tempered safety solar glass and is available in 30, 40 and 50 gallon sizes. The CS-450S solar collector works without a motor or pump connectivity and does not contain any moving parts posing wear and tear problem. The patented housing design of this model can be concealed under a roofing system and is made of powder-coated aluminum. The integral collector storage incorporated in the model utilizes the incoming water pressure for supplying water even under no current situations. The collector connections are tig welded for long-term usage.

The CS-450S Copper Sun Solar Collector model provided by Integrated Solar has a rated capacity of 50 gallon, weighs 327.9 lbs when empty and has a foot print area of 33.43 sq. ft. This model has an aperture length x width of 95.25 inches x 35.25 inches, a frame width x length of 48.75 inches x 98.75 inches. The powder-coated top solar frame of this model is made of 6063 T-5 aluminum and the bottom frame linked to units utilizes integral patented counter flashing. The one-inch polysocyanurate insulation provided in the model is covered with 0.012 aluminum laminated sheet for extra protection. The Solkote coating used in the model absorbs solar power to the tune of 95% and discharges at the rate of 56%.

The CS-450S Copper Sun solar collector provided by Integrated Solar meets the required OG-300 certification standards of Solar Rating Certification Corporation.
