Apr 30 2010
The REC AE230-US solar module from Backwoods Solar Electric Systems has 60 multi-crystalline 156 mm x 156 mm square type cells. The high-transparency solar glass used in this module is provided with antireflection surface treatment to increase its performance in low light conditions.
The junction box used in REC AE230-US solar module has Multi-Contact Solarline MC4 3 bypass diodes to reduce shading effects. The module features an EVA encapsulated frame made of clear anodized aluminum.

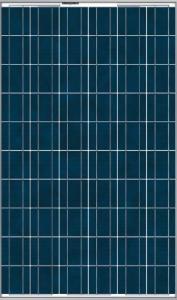

The REC AE230-US Solar Module
Weighing 22 kg, the Backwoods Solar Electric Systems REC AE230-US solar module measures 1665 mm x 991 mm x 43 mm in length x width x thickness, respectively. This solar module is designed to offer a peak power of 230 W, power output tolerance of ±3, maximum power voltage of 294 V, maximum power current of 7.8 A, an open circuit voltage of 37.1 V, and a short circuit current of 8.3 A. While the temperature coefficient of Pmpp is –0.452 (%/°C), the temperature coefficient of Voc is –0.34 (%/°C), and the temperature coefficient of Isc is –0.074 (%/°C). The efficiency of the cell is rated 15.8%, the module efficiency 13.9% and its max series fuse rating is 15 A. The temperature range of REC AE230-US module is -40°C to +80°C, its maximum system voltage is 600 V. This module has a mechanical load of 5400 Pa and can withstand wind speed up to 197 km.
The REC AE230-US solar module provided by Backwoods Solar Electric Systems has a class C fire rating. This product is CEC/CSI listed and certified according to UL 1703 - 3rd edition.
