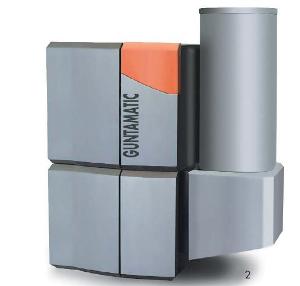

Biocom Flex Pellets Heating System with Vacuum Feed from Guntamatic

Guntamatic offers Biocom Flex Pellets Heating System with vacuum feed. This heating model burns pellets at a temperature of 650ºC to prevent residue. The incorporated self-cleaning step-grate provides the required motion for the removal of ash. The ash dust is collected over a double layered stainless steel surface.

The linking pipe bundle heat exchanger is regularly cleaned by utilizing a stirring type of spiral mechanism and aids in using every degree of temperature generated. The secondary air supply provision installed in the model helps in converting leftover of combustible gases in to clean heat air.

The Biocom Flex 100 Pellet heating system provided by Guntamatic has a boiler performance of 22–100 kW and this model utilizes wood pellets of 6 mm size. The required draught by the heating system is 0.15 mbr, boiler temperature is 60 to 80ºC, return flow temperature is >45ºC and a pump is used for the elevation of return flow. This model can store a maximum of 256 Lt and the max operating pressure is 3 bar. The grate utilized for storing ash can store up to 80 Lt and the ash storage volume of the heat exchanger is 12 Lt. The installation width of this model is 1774 mm and the diameter of its smoke pipe is 180 mm. The total weight of this model without stoker unit is 865 kg.

The Biocom Flex 100 Pellet heating system has a safety heat exchanger and this model requires 230 V/16 A power supply. This model utilizes a menu guided control panel for effective functioning.
