GeoComfort offers GTC Split Series geothermal systems. The systems are available in GTC024, GTC036, GTC048 and GTC60 models. The GTC60 is available in stackable type of standard white powder coated steel cabinet offering good looks and increased usage life. For augmented strength the cabinet is bolted together instead of using screws.
GTC Split Series Geothermal Systems

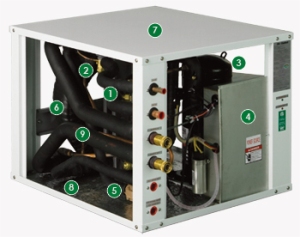

The inside of the cabinet is insulated using 3/8 in. thick recycled blue-jean type of foil faced insulation for noise free operation and easy cleaning. For total noise free working and reduced vibration this model features rubber mounted blowers and rubber mounted scroll compressors.
The coaxial heat exchangers utilized in the GTC60 are corrosion protected and prevents condensation problem at low level temperatures. The air coils utilized in this geothermal system are specially coated for increased life. This unit incorporates Copeland’s UltraTech unloading Scroll compressor technology to offer increased comfort and high efficiency in all types applications. The GTC60 geothermal system offered by GeoComfort delivers good operating efficiency for entering water temperature ranges from 25 to 110°F. This model incorporates digital controls for easy operation and the flow switch used in this model is protected. This model utilizes eco friendly R-410A refrigerant and the refrigerant circuit is totally insulated.
The heating efficiency of GTC060 model under full load condition is 49500 Btu/h and under part load condition is 34600 Btu/h and offers a COP of 3.3 and 4.1 respectively. The cooling efficiency of this model under full load condition is 62100 Btu/h and under part load condition is 43400 Btu/h and offers an EER of 16.5 and 22.4 respectively. This model has an external service LED for easy maintenance. This geothermal model is AHRI and Energy Star certified.
