Jun 16 2010
Superwind Germany offers the Superwind 350 small wind generator. This wind generator is suitable for use in places with extreme weather conditions and no grid connectivity.
The power generated by the wind generator can be directly connected to 12 V or 24 V electric instruments such as measurement systems, navigational aids and transmitters. The power supply also can be connected to energy saving appliances such as refrigerators, water pumps, lamps, consumer electronics and deep freezers.

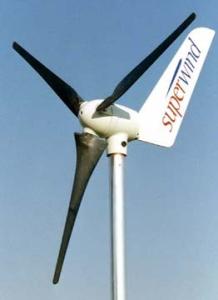

Superwind 350 Small Wind Generator
For using appliances with 230 V or 110 V power requirement an optional inverter can be attached with the wind generator. This wind generator also can be used in combination with solar hybrid systems for increased power generation. The Superwind 350 small wind generator offered by the Superwind Germany produces a maximum power output of 350 W at a nominal wind speed of 12.5 m/s. This wind turbine starts producing power at a cut in wind speed of 3.5 m/s.
The rotor of this wind generator has a diameter of 1.20 m and incorporates three blades made of CFK material. The rotor of this wind generator operates in speed ranges of 500 to 1300 rpm. A permanent magnet generator incorporated in the wind generator produces a nominal voltage of 12 VDC or 24 VDC. For stopping the operations of the rotor and the wind turbine a short circuit brake system combined with generator operations is included. This wind turbine weighs 11.5 kg.
