Jun 23 2010

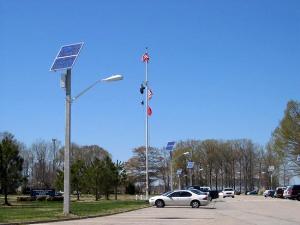

SOL Inc offers the TPM Series solar lighting. This lighting module features a pole mounted, adjustable and tilted solar power panel and a lighting fixture.
The adjustable features available for the solar panel enable easy maintaining of the solar panel in an optimum angle to harvest maximum energy. The intelligent lighting system incorporated in the module measures the available battery storage to optimize the performance of the utilized LED lights.
TPM Series Solar Lighting
The maintenance-free gel cell batteries with 100 Ah rating can offer a battery back up of five days during inclement weather conditions. The power saving batteries weighing 68 lbs are kept in a NEMA 3RX rain protected, air vented aluminum enclosure with easy to remove doors. The structural assembly of the TPM Series solar lighting offered SOL Inc is made of anti corrosive aluminum and stainless steel and works efficiently in all types of environments. For efficient lighting this module incorporates 5100 k powered LED lightings. The LED lightings are powered from the battery and starts instantly without warm up or cold start conditional requirements.
The solar panels utilized in the lighting modules are available in 80, 130, 160, 260, 320 and 390 W ranges with variations in the solar panel sizes. A maximum power of 390 W is achieved by utilizing 3 x 130 W panels measuring a length x width dimension of 59.02 in. x 78.18 in. The 390 W panel outputs power of 21.48 A at 12 V to light cover an area of 27.02 sq.ft. This solar lighting is assembled in an ISO 9001:2001 certified facility.
