Jun 25 2010
Amerisolar offers AS-6P27 photovoltaic modules. These modules are available in 170 to 210 W power ranges. These PV modules are meant for use in places requiring large level of electrical power.
The solar cells incorporated in the modules offer increased power output and optimal performance. The low iron tempered and high transmission graded glass used in the modules use nonreflective coating for increased power output and added strength. The aluminum frame used for fixing the solar modules comes with 10 holes for easy and screw less corner connection.

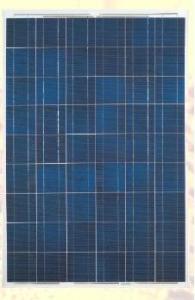

AS-6P27 Photovoltaic Module
The multi function junction box utilized with the modules allows water proofed connectivity. The AS-6P27 photovoltaic modules effectively resist moisture and consequent etching problem. These modules incorporate 54 numbers of square type poly silicon cells each measuring 156 mm x 156 mm. The dimension of the AS-6P27 210 W PV module offered by Amerisolar is 1494 mm x 1000 mm x 45 mm and weighs 18 kg. The AS-6P27 210 W module offers a maximum power of 210 W, an open circuit voltage of 33.0 V, a short circuit current of 8.48 A, a maximum power voltage of 27.1 V, a maximum power current of 7.75 A and maximum system voltage is 1000 VDC.
The power efficiency of this module is 14.0% and this module operates in temperatures ranging from -40 to +85°C. This module can bear a maximum surface load of 60m/s.
