GSC Single Stage Split Series Geothermal System from GeoComfort

GeoComfort offers the GSC Single Stage Split Series geothermal system. The single stage split series geothermal systems are available in eight models with heating BTU/h ranging from 13,300 to 57,900 and the cooling BTU/h ranging from 16,700 to 72,000.

The top performing GSC072 model offers a heating BTU/h of 57,900 with 3.2 COP and a cooling BTU/h of 72,000 with 15.2 EER. This geothermal system incorporates Copleland single stage scroll compressor with fewer moving parts for better liquid handling and offering protection against liquid damage. The GSC Single Stage Split Series geothermal system offered by GeoComfort incorporates an insulated refrigerant circuit for using eco friendly R-410A refrigerant.

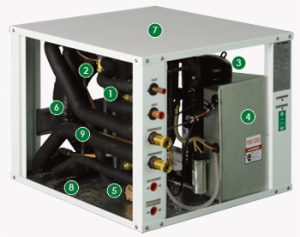

This geothermal system is kept inside a white powder coated steel construction and bolted cabinet. The side panels of this unit can be removed easily for servicing. The air coils utilized in the unit are coated for long life. This geothermal system incorporates a built in bidirectional thermal expansion valve and variable speed ECM blower motors. Drain pans incorporated in the geothermal unit are made of stainless steel and remain corrosion free. The coaxial water heat exchanger utilized in the model is made of copper. For efficient managing of the geothermal operations this unit incorporates digital controls. The flow switch incorporated in the model is water protected. The unique fault retry feature incorporated in the geothermal reduces the number of service calls.

This geothermal unit is ETL Certified to UL & CSA Standards and AHRI Certified to ISO Standards.
