Jul 9 2010
KACO Solar offers the KACO blueplanet XP100U-H2 grid connected inverter. All the operations of this inverter are digitally controlled. The digital signal processor incorporated in the inverter controls and monitors the components installed in the inverter and their functions to offer higher level of reliability and efficiency even when connected to unstable grid connectivity. The plus width modulation algorithm installed in the inverter increases the performance of the PV plant and in turn the production.

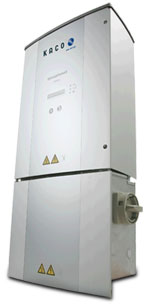

KACO blueplanet XP100U-H2 Grid Connected Inverter
A variable speed fan incorporated in the inverter augments the performance of the PV system. A redundant power supply to the fan and the control boards gets rid of the possibility of single point failures for continuous working of the unit and increased output. The TFT touch screen installed in this inverter allows easy on the spot configuration of the inverter. Each of the KACO blueplanet XP100U-H2 grid connected inverter offered by KACO Solar is web enabled through RS485 connectivity and utilizes JAVA enabled browser for easy updating of the systems software from remote for increased kWh output.
The maximum DC operating range of this module is 300–600 V, its maximum DC input voltage is 600 V and its maximum DC input Isc current is 410 A. The maximum continuous output power of this unit is 100 kW, its maximum continuous output current is 278 A, maximum over current protection is 400 A, maximum output fault current is 278 A. This operating AC voltage of this unit is 208 V 3-phases Wye and its frequency is 60 Hz. The ambient functioning temperature of this module at max AC power is -20 to +50ºC. The KACO blueplanet XP100U-H2 grid connected inverter incorporates a NEMA 3R type of enclosure. The height x width x depth dimension of this inverter is 1840 mm x 1724 mm x 930 mm and weighs 1200 kg.
