Apr 23 2010
Amerisolar offers AS-5M36, a high-efficiency monocrystal silicon photovoltaic solar module. This solar module is designed for use in places where the electric power requirement is more.

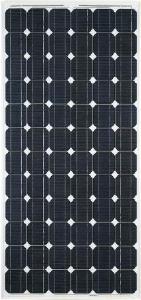

AS-5M36 Mono-crystal Silicon photovoltaic solar module
The AS-5M36 can be conveniently used for both on-grid and off-grid applications. The low-iron tempered glass used in this module is anti-reflective paint coated for improved mechanical intensity and increased power production. To facilitate easy quicker installation the aluminum frame utilized in this module is offered with pre-drilled mounting holes. The screw-less joints employed in the frame increases the resistance. This module is available in output ranges such as 155, 160, 165, 170, 175, 180 and 185 W.
The length × width × depth measurement of the Amerisolar AS-5M36 185 W solar module is 1580 mm x 808 mm x 45 mm and the module weighs 15.5 kg. The number of cells per module is 72. The AS-5M36 185 W solar module is designed to offer a maximum power of 185 W, a open circuit voltage of 44.5 V, a short circuit current of 5.40 A, a maximum power voltage of 37.50 V, a maximum current of 4.95 A and this module has an efficiency of 14.5%. The maximum system voltage of this module is 600 V DC and the module operating temperature is -40 to +85°C.
The AS-5M36 185 is corrosion resistant and moisture proof and withstands severe weather conditions such as hail storm, rain, high wind and heavy snow. This module meets CE, TUV, UL, IEC, MCS and Korea Certification requirements.
