Jul 2 2010
Solar Development offers the ET-P672280 polycrystalline silicon photovoltaic module. This PV module incorporates square type 156 x 156 mm polycrystalline silicon solar cells in 72 cells series. The low temperature property of this module allows higher power output during high temperature conditions.
The EVA encapsulation system incorporated in the module comes with a three layer back sheet and copes with the safety demands of high voltage operations. The sturdy aluminum frame used in the module facilitates easy mounting of modules on different types of racking systems and endures adverse weather conditions.

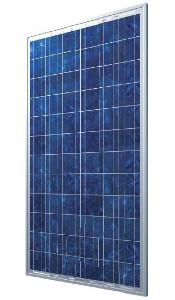

ET-P672280 Polycrystalline Silicon PV Module
The bypass diodes incorporated in the ET-P672280 PV module offered by Solar Development prevents overheating damages caused by defective or shaded cells. The frame design utilized in the module has more grounding holes for easy flexible installation and hexagonal shaped drainage holes for easy draining of rain water. The dimension of ET-P672280 PV module is 1956 mm x 992 mm x 50 mm and it weighs 23 kg. This solar module offers a peak power of 280 W, a maximum power voltage of 36.72 V, a maximum power current of 7.63A, an open circuit voltage of 43.78 V, a short circuit current of 7.98 A and a maximum system voltage of 1000 VDC.
The output tolerance of this module is +/-3% and its normal operating temperature is 45.3 ± 2ºC. The ET-P672280 PV module is manufactured in an ISO 9001:2000-certified plant.
