Apr 30 2010
Galaxy Energy offers the Solarmodul GS230p. This polycrystalline module has 60 polycrystalline cells 156 mm x 156 mm in size, connected together in series. Designed for grid connected applications, the Solarmodul GS230p module features a pre-wired IP65 junction box with MC4 compatible connectors. This module is constructed with an anodized aluminum frame and delivers a performance tolerance of ±3%.

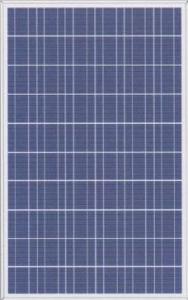

The Solarmodul GS230p
The Solarmodul GS230p module weighs 19 kg and measures 1643 mm, 987 mm, 40 mm in length, width, and depth, respectively. The temperature limit of this model is -40°C bis +85°C and the maximum system voltage is 1000 V DC. The NOCT of this module is 45 ±2ºC, its current temperature coefficient is 0.033 %/°C, voltage temperature coefficient is 0.36 %/°C, and power temperature coefficient is -0.44 %/°C. This model is designed to offer an open circuit voltage of 37.2 V, an optimum operating voltage of 29.5 V, a short circuit current of 8.24 A, an optimum operating current of 7.69 A, and a maximum power at STC of 230 Wp. The power tolerance of this module is ±2.
The UL certified Solarmodul GS230p meets the quality standard requirements of ISO 9001, IEC 61215, TUV Safety Class II, and CE.
